Display Inspection

Integrated Measurement System

Display Visual Inspection

INTEKPLUS's display visual inspection equipment and module inspection are the optimal inspection solutions to satisfy the needs of global customers.

Visual Inspector
INTEKPLUS's display visual inspector accurately and quickly inspects microscopic defects in units of several tens of um. A variety of options are available to help our customers realize the optimal inspection process that customers wants
  • Inspection Target

    OLED Rigid/Flexible Cell

    Cover Glass, UTG (Ultra Thin Glass)

  • Characteristics

    Full-auto, Semi-auto selectable

    Application of 2D/3D composite technology

    Applicable to various size displays

  • Model

    OLED Cell Automated Inspection Equipment

    Glass Automated Inspection Equipment

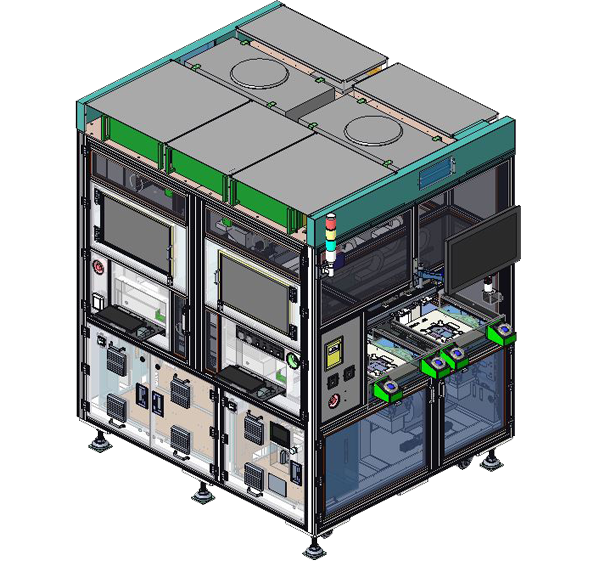

OLED Cell Automation
Inspection Equipment
This is an OLED Rigid/Flexible Cell visual inspection equipment that detects defects of several tens of μm occurring on the front/rear side of the cell.
  • Inspection
    2D/3D Combination technology
  • Stage
    One-touch Stage Easy For Job Conversion
  • Cell Size
    6 ~ 32 inch
  • Option
    Full Auto
    Semi Auto

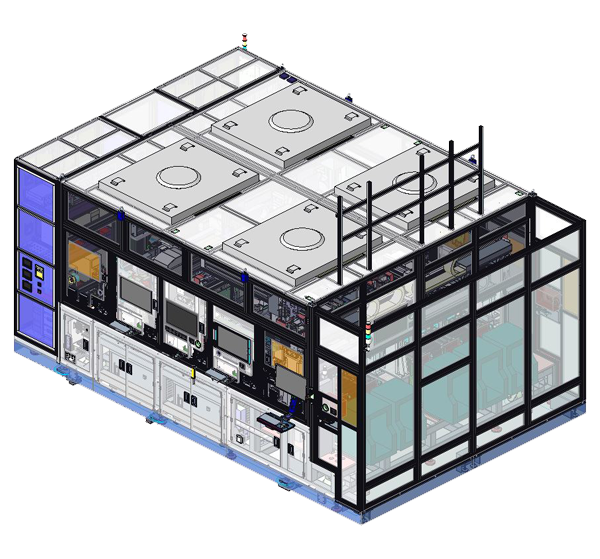

GLASS automated inspection equipment
It is a device that inspects the exterior of a specific part of the cover glass that goes into a smartphone/foldable phone.
  • Resolution
    2D/3D Combination technology
  • Stage
    One-touch Stage Easy For Job Conversion
  • Auto Focusing
    Using Real-time Tracking Mode
  • Option
    Full Auto
    Semi Auto
Optical Module
The optical module is an inspection vision machine with the best technology of INTEKPLUS. It can be applied to any manufacturing process desired by customers in the display field.
  • Inspection Target

    OLED Rigid/Flexible Cell

    Display Module

    UTG

  • Characteristics

    High-Resolution Optical System

    Large F.O.V

    Auto Focusing module

  • Model

    OLED Cell Review & Inspection Module

    Module Automation Review & Inspection Module

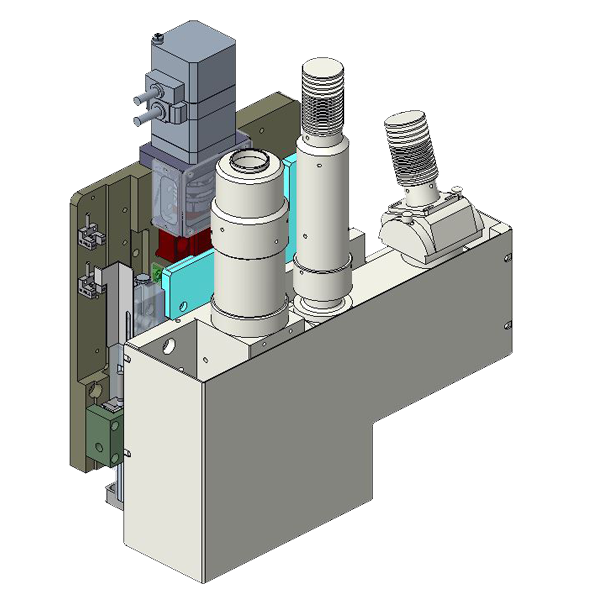

OLED Cell Review
& Inspection Module
It is an inspection module for review or specific area after OLED Rigid/Flexible Cell visual inspection.
  • Resolution
    1.2um
  • Large F.O.V
    6mm×6mm
  • Defect Review
    OLED Cell Defect Review
  • Option
    Hole/Edge Inspection

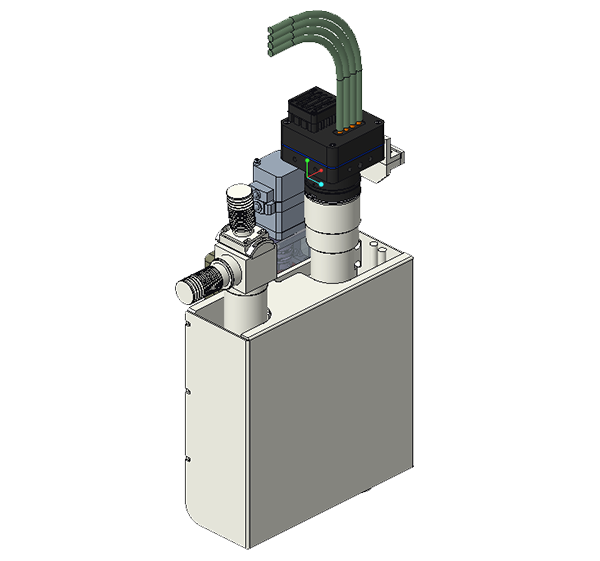

Module Automation Review
& Inspection Mode
OLED Rigid/Flexible Module Review optical module after visual inspection.
  • Resolution
    0.73um
  • Layer distinguish
    Using Layer distinguish Solution
  • Auto Focusing
    Using Auto Focusing Module
  • Defect Review
    OLED Module
    Defect Review
