Secondary Battery
Inspection

Integrated Measurement System

Visual inspection of secondary
batteries for automobiles

INTEKPLUS's unique vision machine technology, which has been reknownd in the cutting-edge industrial field, will present the standard for visual inspection of secondary batteries for automobiles.

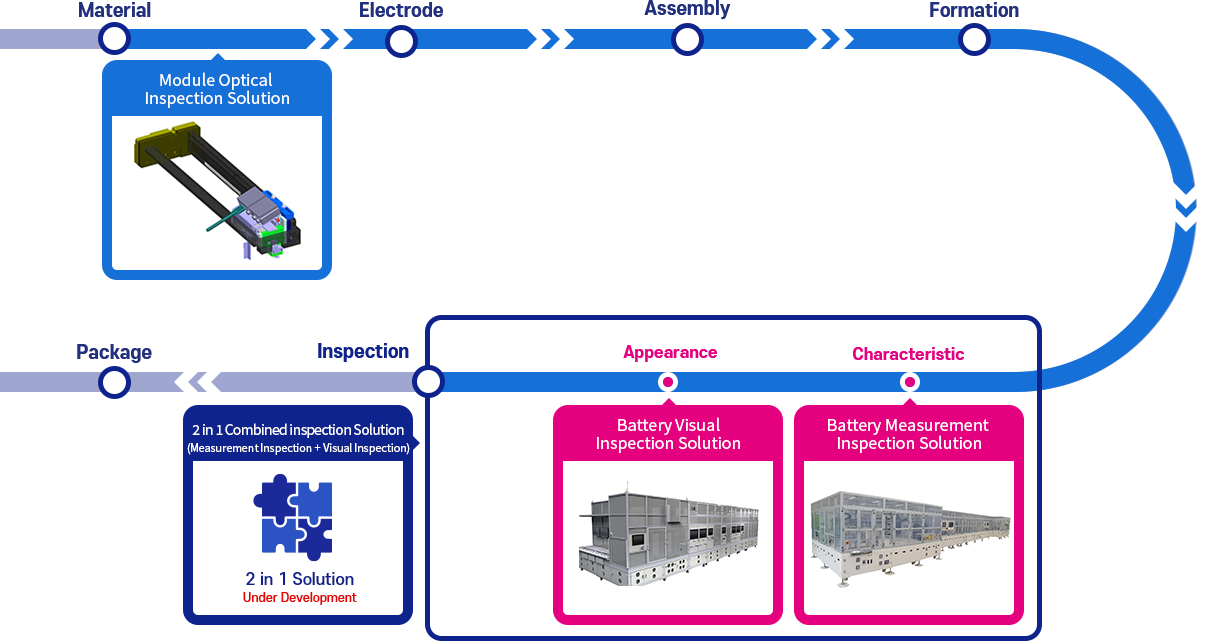

INTEKPLUS TECHNOLOGY
IN SECONDARY BATTERY PRODUCTION
Secondary Battery Cell Tester
The secondary battery cell tester is a device that inspects the appearance, dimensions, and electrical characteristics of pouch type battery cells.
  • PPM (Max)

    18 ppm (Ave. 16.5 ppm↑)

  • Dimension

    Customizing available

    iBIM-E200 : W3,300 x D 22,215 x H2,250mm

    iBAIS-S200 : W15,500 x D7,500 x H3,400mm

    W3,800 x D 21,645 x H2,250mm

  • Object

    Secondary battery for EV (Pouch type)

  • Model

    iBIM-E200

    iBAIS-S200

    iBIM-C200

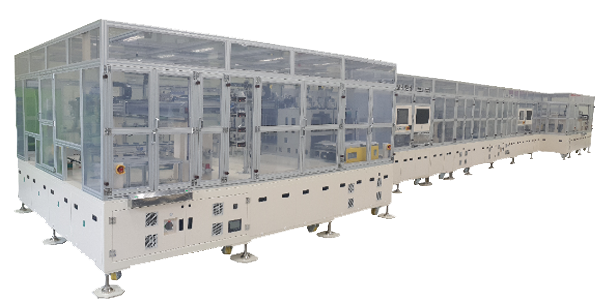

IBMI-E200
[Battery Cell Measurement and Inspection]
“Measurement Inspection Solution to Securing Battery Cell Quality and Safety”
It is a measuring device to secure the quality and stability of battery cells to which vision technology optimized for the secondary battery field is applied.
  • Precision Inspection
    Applied Position Adjustment Program
  • Tab Inspection
    Optimized Tab Cutting Dimensional Inspection
  • Inspection Performance
    Applied Vision Technology Optimized for Secondary Battery
[Inspection Target]

  • Thickness

  • IR/OCV

  • Insulation

  • Marking
    Unit

  • Marking
    Reader

  • Marking
    Verifier

  • Tab cutting

  • Tab size

  • Weight

  • NG Sorting

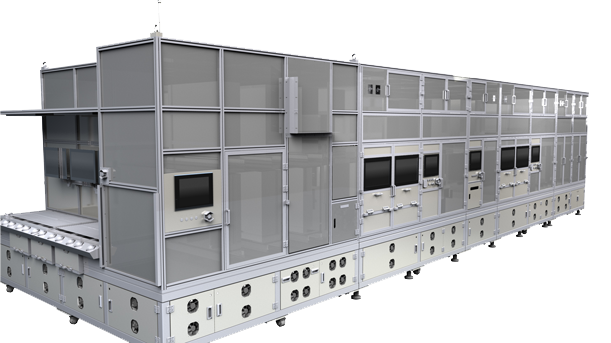

iBAIS-S200
[Improvement of Inspection Quality]
2D & 3D High-tech inspection system with Deep Learning brings you Improvement of Inspection Quality
"Smart & Complete Appearance Inspection for Battery Cell"
iBAIS-S200 the complete inspection equipment for Battery Cell which applys High-tech 2D/3D inspection technology and Deep learning
  • Vision inspection
    3D/2D
    Inspection
  • Deep learning
    Smart & precise
    detection
  • Convenience
    User-Friendly
    Interface
[Inspection items]
[Battery Surface ( Front/ rear)]

  • Scratch

  • Pressed

  • Stabbed

  • Folded (Electrode)

  • Folded (Separator)

  • Polluted
    (Outer)

  • Polluted
    (Inner)

[TAB]

  • Scratch

  • Stabbed

  • Folded
    (Electrode)

  • Polluted
    (Outer)

  • Burr

[Battery Side]

  • Pressed

  • Stabbed

  • Incorrect
    Folding

  • Height
    Folding

[Etc]

  • Curved

  • Bulge

  • Stabbed
    (Inner)

  • Electrode
    wrinkle

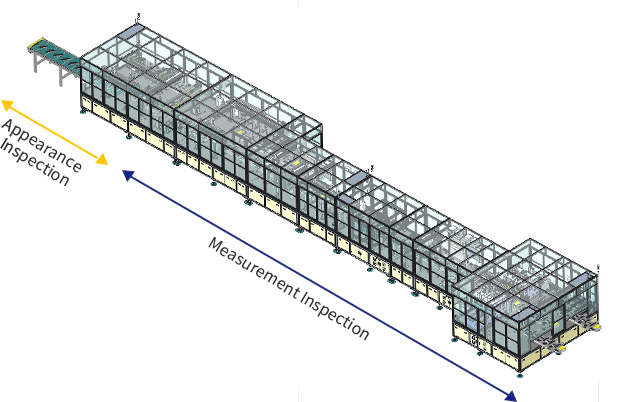

iBIM-C200
[2 IN 1 INSPECTION SOLUTION]
Integrated Inspection Solution which allows Physical & Electrical measurement and Appearance inspection by itself.
ONE-STOP Integrated Solution for Battery Cell makes your manufacturing process more precise and efficiency.
  • Integrated Inspection
    Measurement
    & Appearance Inspection
  • Vision inspection
    3D/2D Inspection
  • Convenience
    User-Friendly
    Interface
[Measurement Inspection]
[Appearance Inspection]

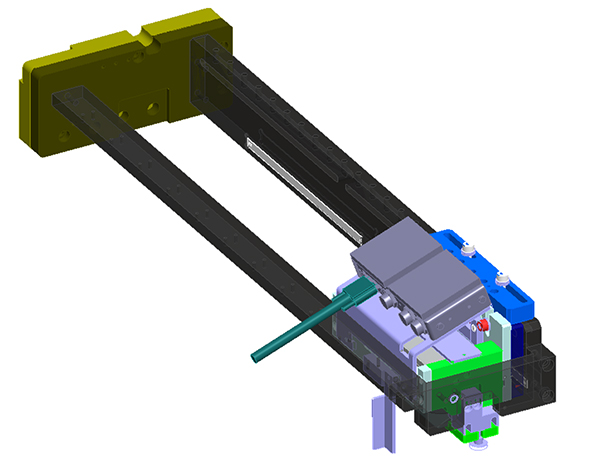

Secondary battery optical module
The compact optical module that can be applied to all secondary battery production processes contains the latest technology of INTEKPLUS.
  • PPM (Max)

    18 ppm (Ave. 16.5 ppm↑)

  • Dimension

    W3,300 x D 22,215 x H2,250mm (Customizing available)

  • Object

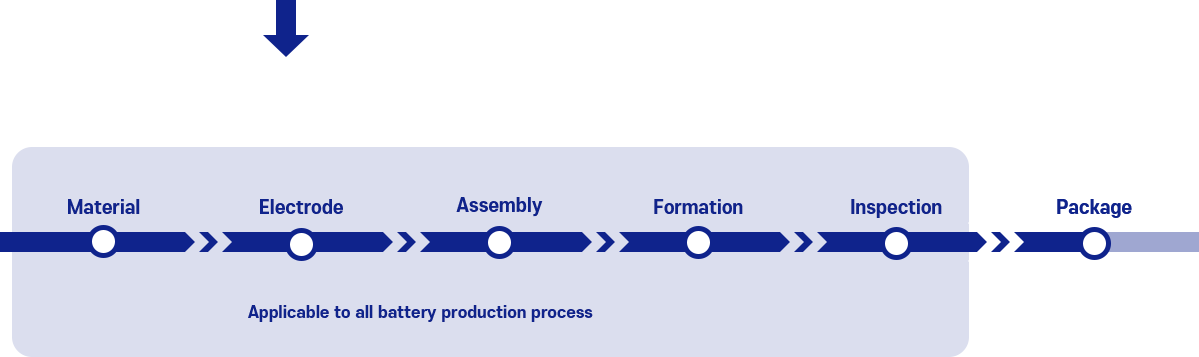

    Applicable to all battery production process

  • Model

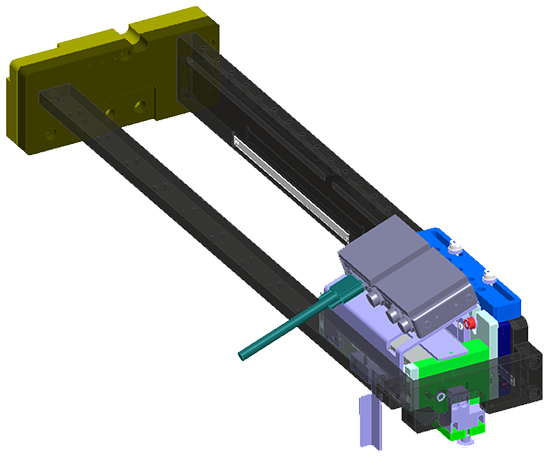

    iBMI-M100

iBMI-M100
Since it is a compact optical module that can be installed in the space of the facility, it is possible to introduce inspection solutions into various processes.
  • Vision Inspection
    3D/2D Combined Inspection
  • Space utilization
    Installation of Equipments
  • Customizing
    Applicable to all Process
